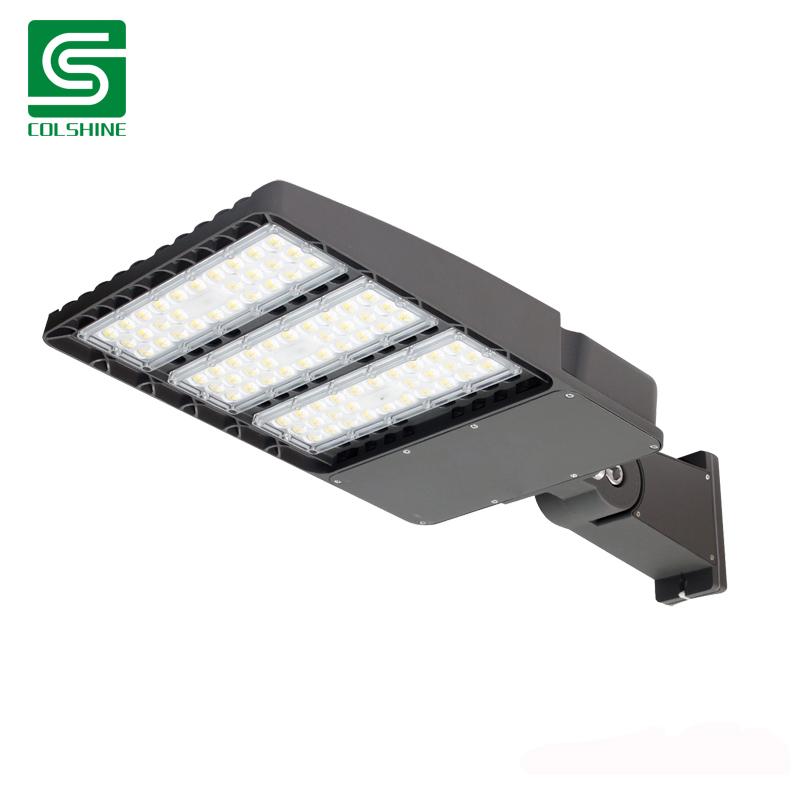

120-277V LED Parking Lot Shoebox Area Light with Slipfitter Mount Type 3 Distribution 5000K

120-277V LED Parking Lot Shoebox Area Light with Slipfitter Mount Type 3 Distribution 5000K

LED shoebox light fixtures from Colshine are the perfect solution for replacing old outdated HID parking lot lighting or area lights. Available in wattages from 40 watts at the low end, all the way up to 300 watts on the high end designed for replacing 1000 watt HID fixtures! Not only will you save 50-80% on energy savings, you also can save thousands of dollars on regular maintenance required for HID including bulb and ballast fixes.

  • Product origin:

    Fuzhou, China
  • Color:

    Black
  • Shipping port:

    Fuzhou, Xiamen
  • Lead Time:

    20-30days
  • Certification:

    UL, ETL,DLC, CE, SAA, RoHS
  • OEM & ODM:

    Welcome
  • Product Details

Product Name: 120-277V LED Parking Lot Shoebox Area Light with Slipfitter Mount Type 3 Distribution 5000K



Product Description:

This LED shoebox area light is designed for 100-277V applications and shines brightly when reliability and performance are critical. And with a life expectancy that's 3 times as long as MH fixtures—the low-maintenance LED light reduces costly repairs and the need for replacements. Slip-fit onto a round pole, or use it with one of several mounting options (sold separately) for walls, ceilings, and on the sides of round or square poles. It's constructed of a weatherproof die cast aluminum housing. This LED fixture is perfect for parking lots, roadways, car dealerships, campuses, parks, and as a replacement for street lights and vapor lamps.

Colshine LED Area lights are available with different light distributions so that you can select the fixture that will best direct the light where you want it to go. When lighting a street or sidewalk, you want most of the light on the path. Alternatively, in a parking lot setting, you would want a much wider light distribution, allowing both cars and aisles to be well lit. This can help pedestrians feel safer getting back to their cars and reduce incidents in your parking lot.

Product Specification:

Power:
SMD 50W / 100W / 150W /200W /250W /300W
Rated voltage:              AC 85-277V, 50HZ-60HZ
RA >80
PF    >0.9
Lumen:  100-130lumen/watt
IP class: IP65
Certificate: ETL, UL , DLC, CE, RoHS, SAA
Remarks:

1. include a high quality isolated constant led driver(with surge protection 6KV)

2. OEM ARE WELCOME.



Product Details Display:

led parking lot lights with photocell LED Area Light Dusk to Dawn

LED Pole Lights for Lighting Your Ourdoor Area

FAQ:

Q1. how to wire led area lights?

A:  First, please check if the led area parking lot lights are with dusk to dawn sensor/dimmable or not .  If the light is dusk to dawn sensor/dimmable, then it come with two leads, one for L/N/E, and the another for sensor/dimmer.

Please check the manual carefully before wiring.

Q2.Are you manufacturer?

A: Yes. Our factory is located in Fuzhou. Welcome to visit our factory if your time permitted.

Q3. Do you accept sample order?

A:Sample order is acceptable. Sample can be sent within 1~3 days after payment confirmed.

Q4. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q5. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. How to proceed an order?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

led pole mounted area lights
